Product Overview

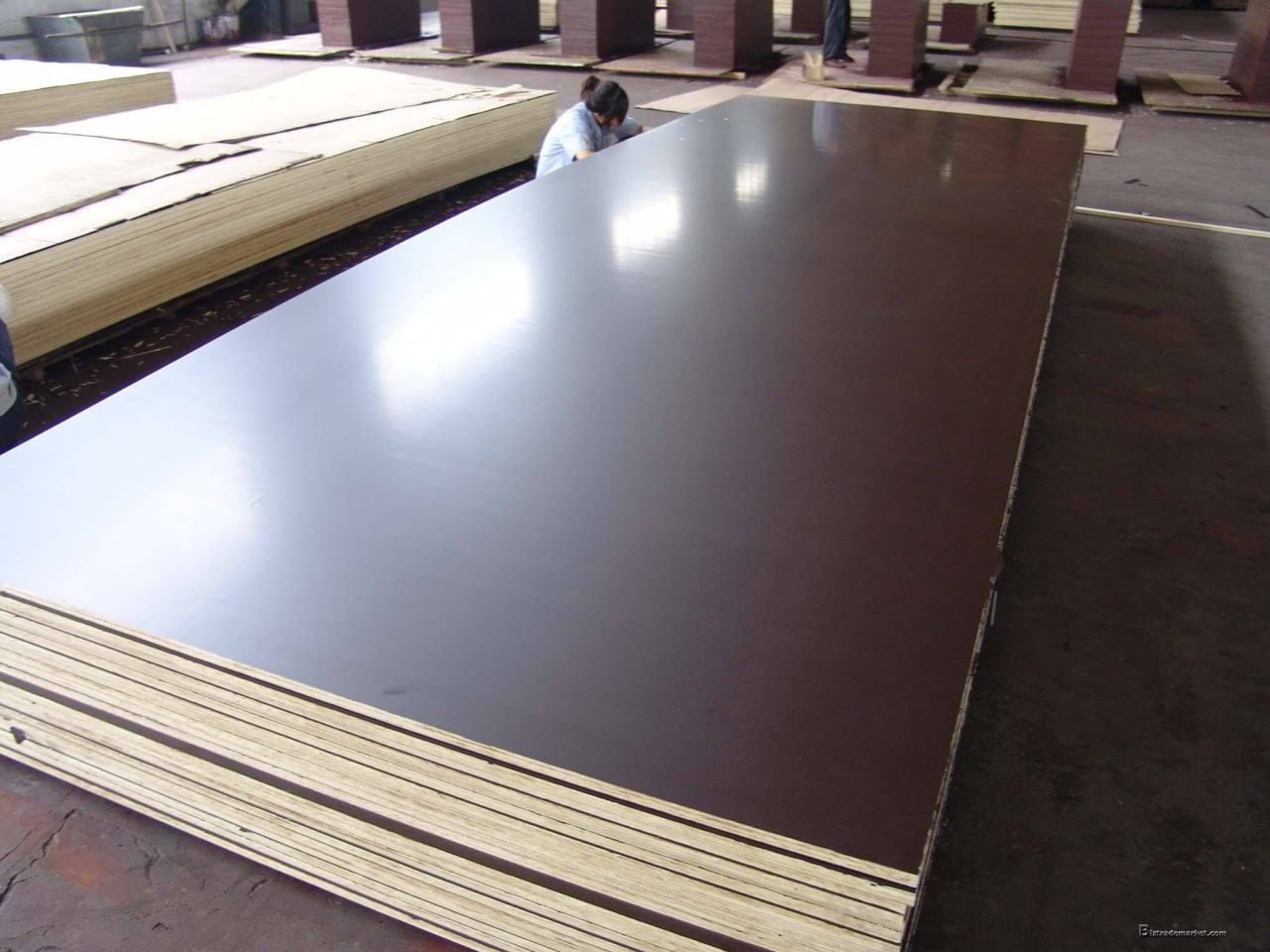

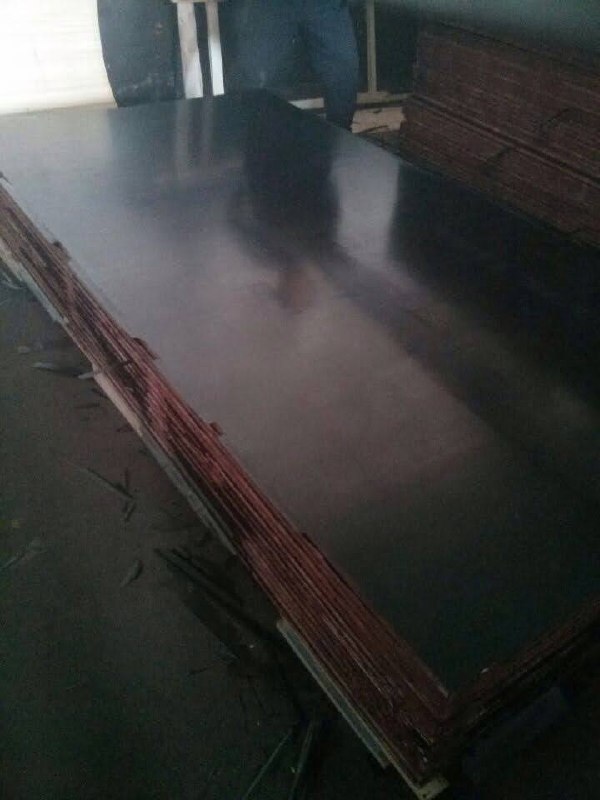

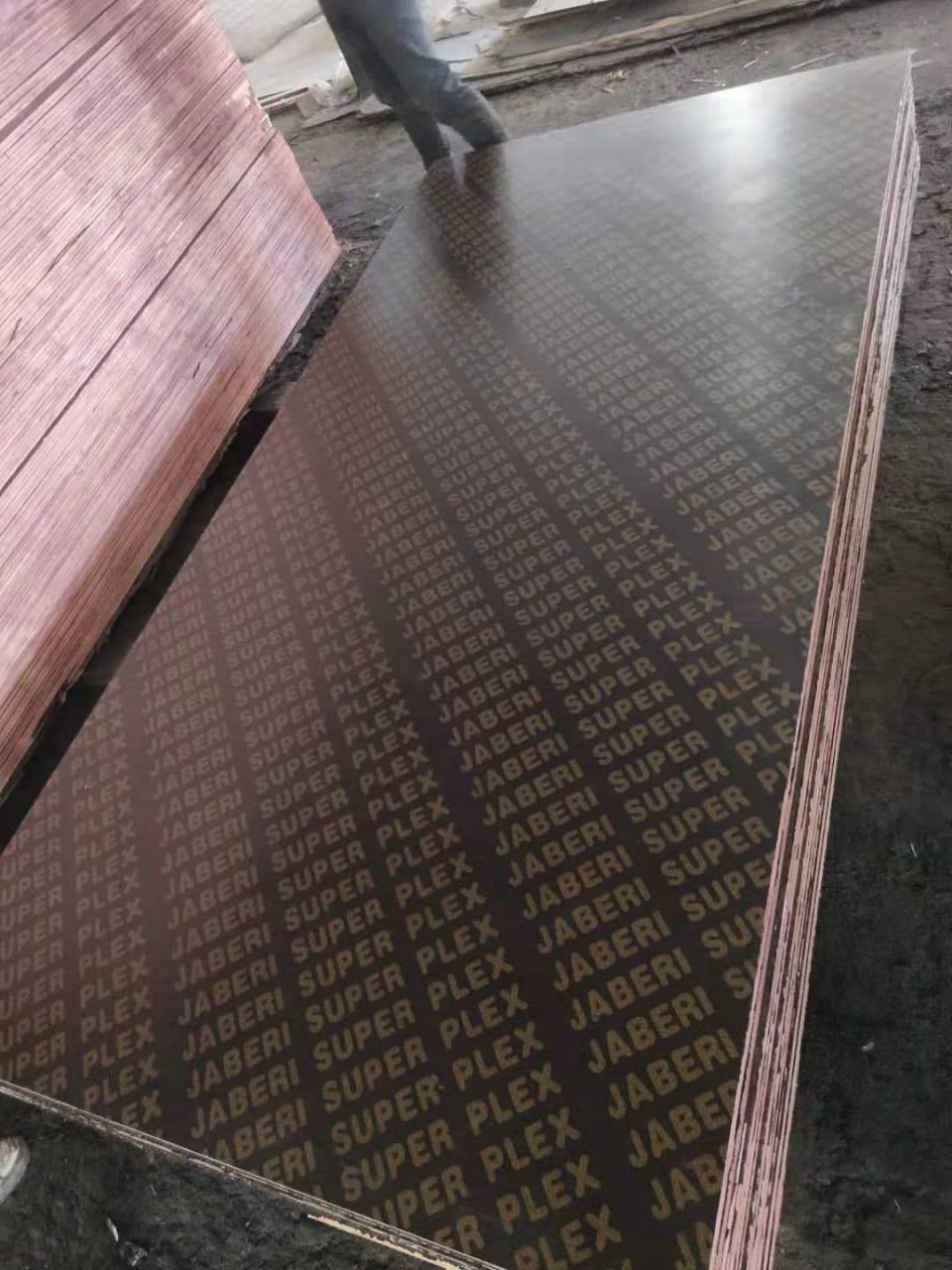

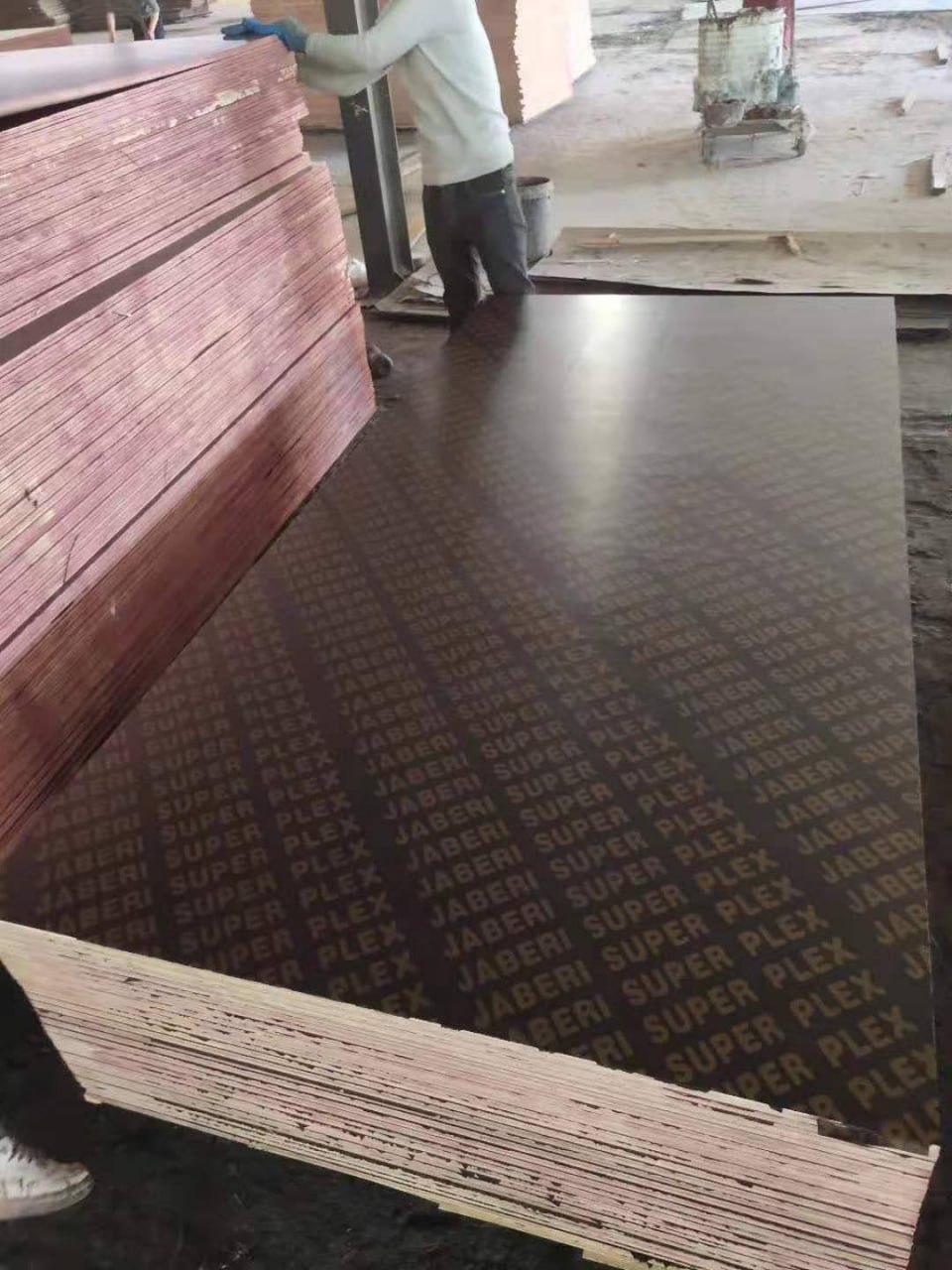

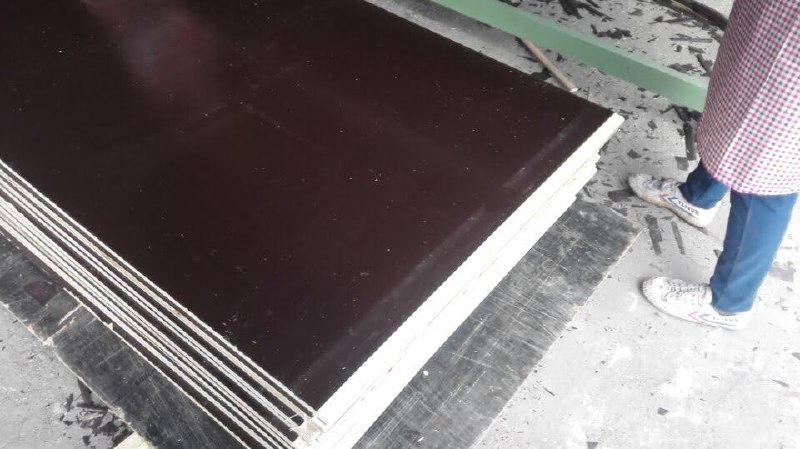

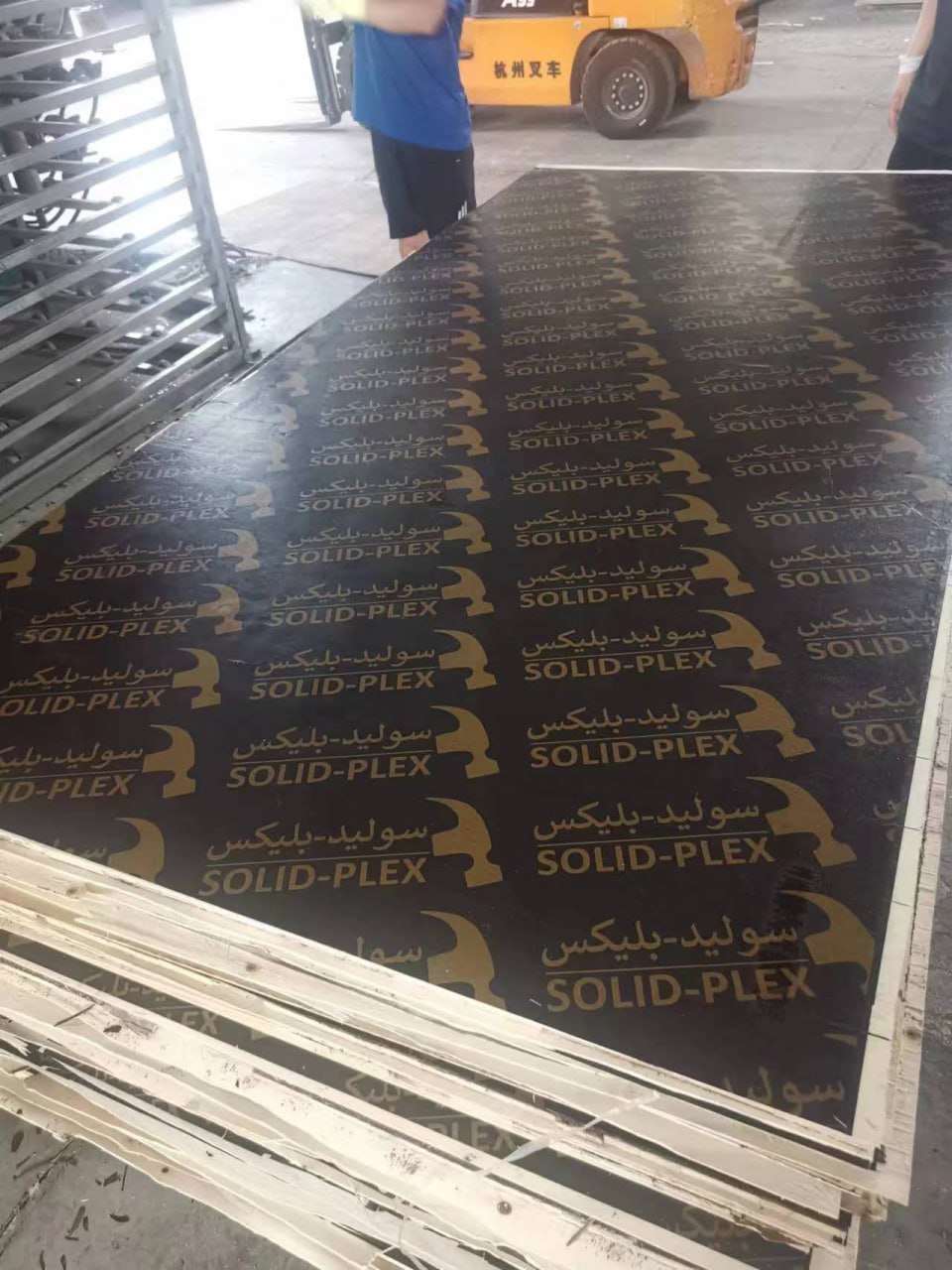

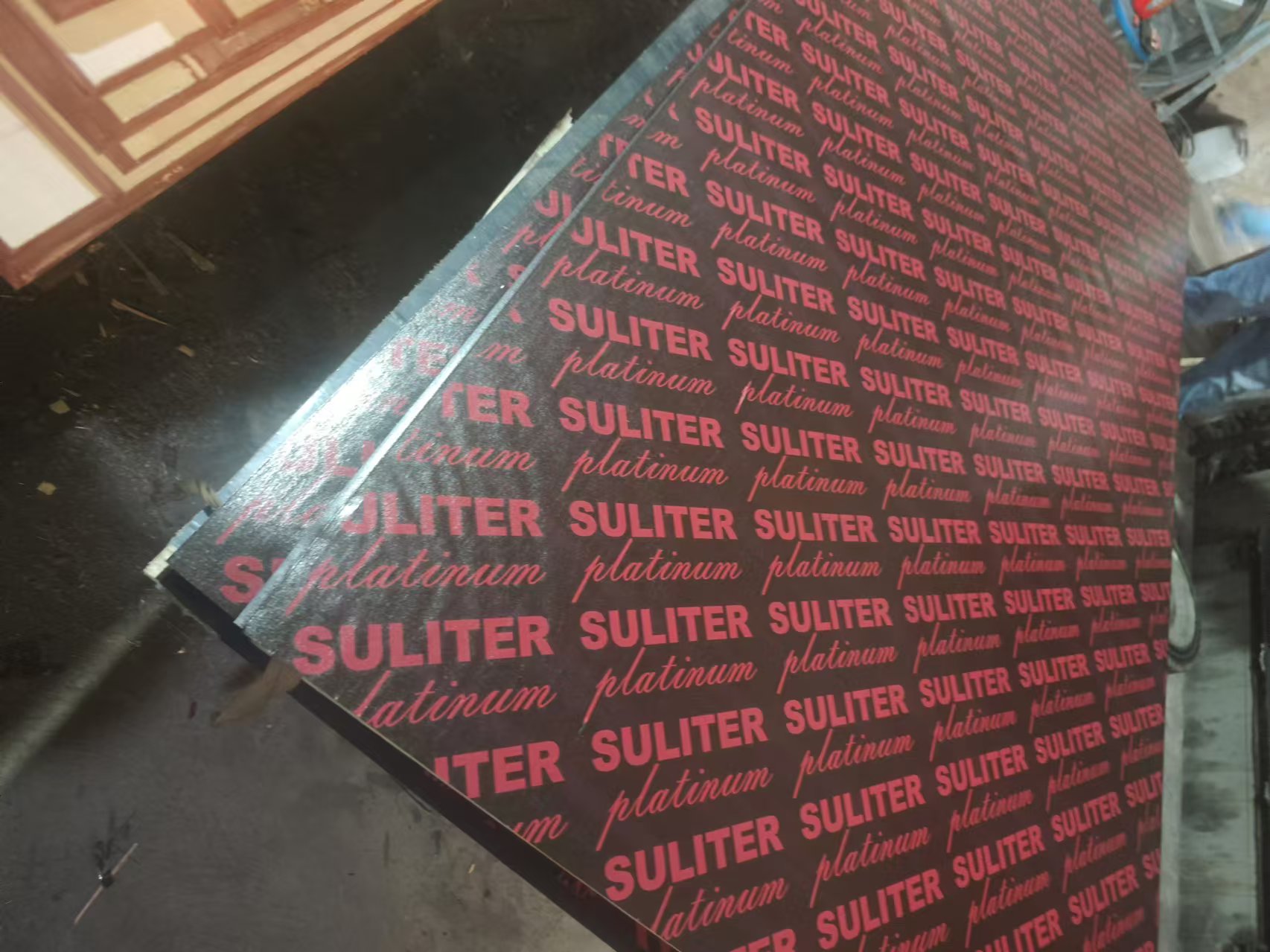

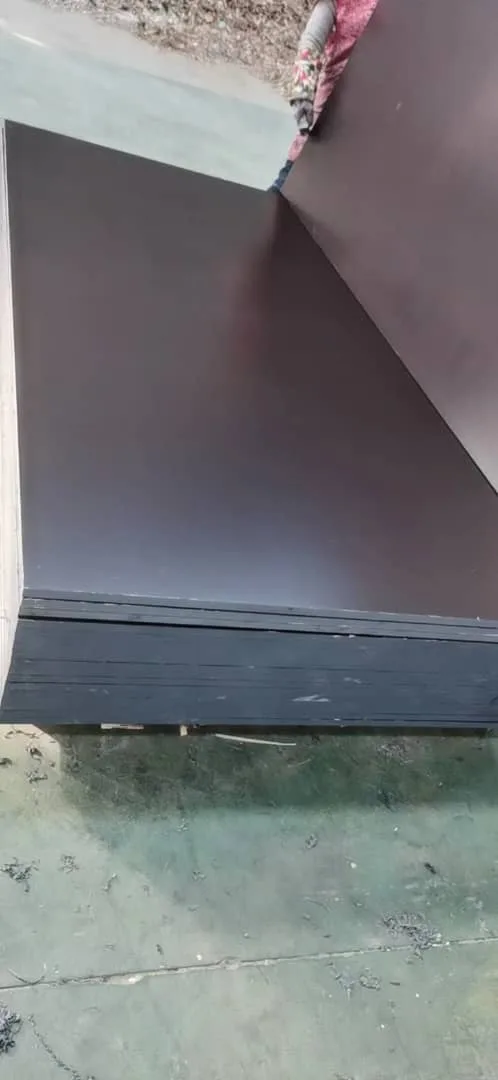

Film Faced Plywood, also known as shuttering plywood or concrete formwork plywood, is a high-performance construction panel engineered for repeated use in concrete forming. Both surfaces are coated with a phenolic resin film overlay — creating a smooth, hard, and extremely durable surface that resists moisture, chemicals, abrasion, and weathering.

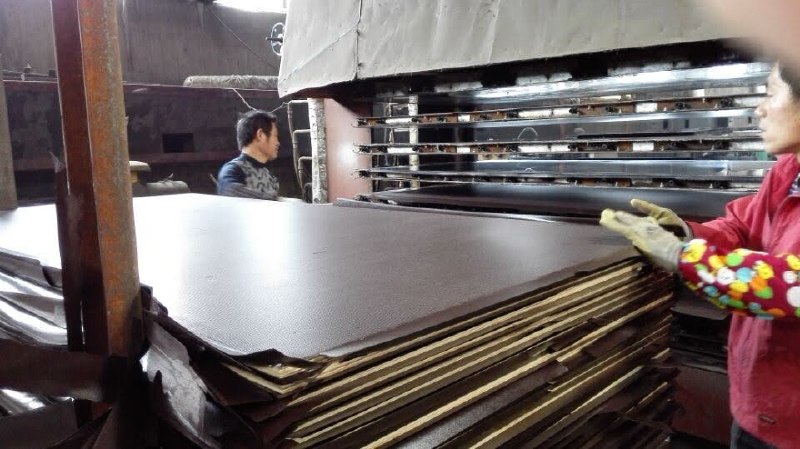

The film is bonded to the core veneers under high temperature and pressure, producing a surface that delivers excellent concrete finishes and can be reused many times. All edges are sealed with water-dispersible acrylic paint to protect against moisture ingress from the sides.
We offer various core types, film weights, and colours to match your project requirements — whether for structural concrete formwork, architectural exposed finishes, or anti-slip industrial flooring.
Key Features
Superior Water Resistance
WBP (Water Boil Proof) glue combined with phenolic film overlay ensures exceptional moisture protection — performs reliably in wet concrete environments and outdoor conditions.
Smooth Concrete Finish
The hard, non-porous film surface releases easily from cured concrete, producing a clean, smooth finish with minimal surface defects.
High Reusability
With proper care and use of release agents, film faced panels can be reused 10–25+ times, significantly reducing per-pour cost compared to uncoated formwork.
Chemical & Abrasion Resistant
The phenolic resin coating resists alkali (cement is highly alkaline), acids, and mechanical wear — maintaining panel integrity through demanding construction cycles.
Sealed Edges
All panel edges are factory-sealed with acrylic sealant, minimizing moisture penetration and extending panel lifespan even when stored outdoors.
Multiple Core & Film Options
Choose from poplar, hardwood, or combi cores, and various film types to match your budget and performance needs.

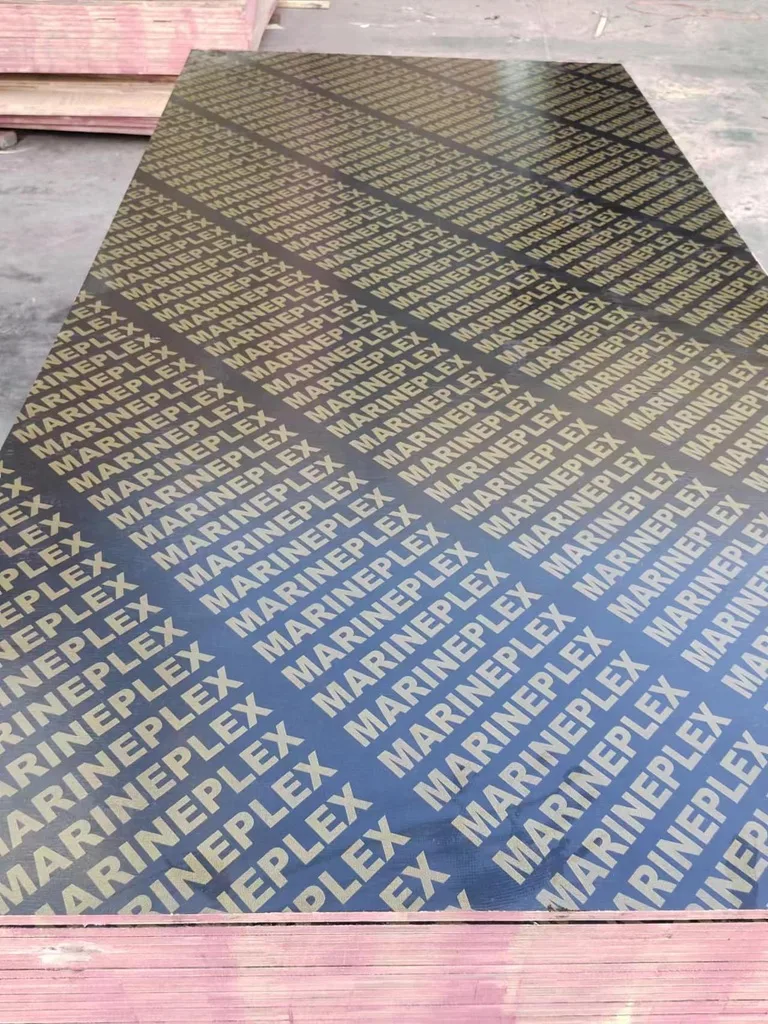

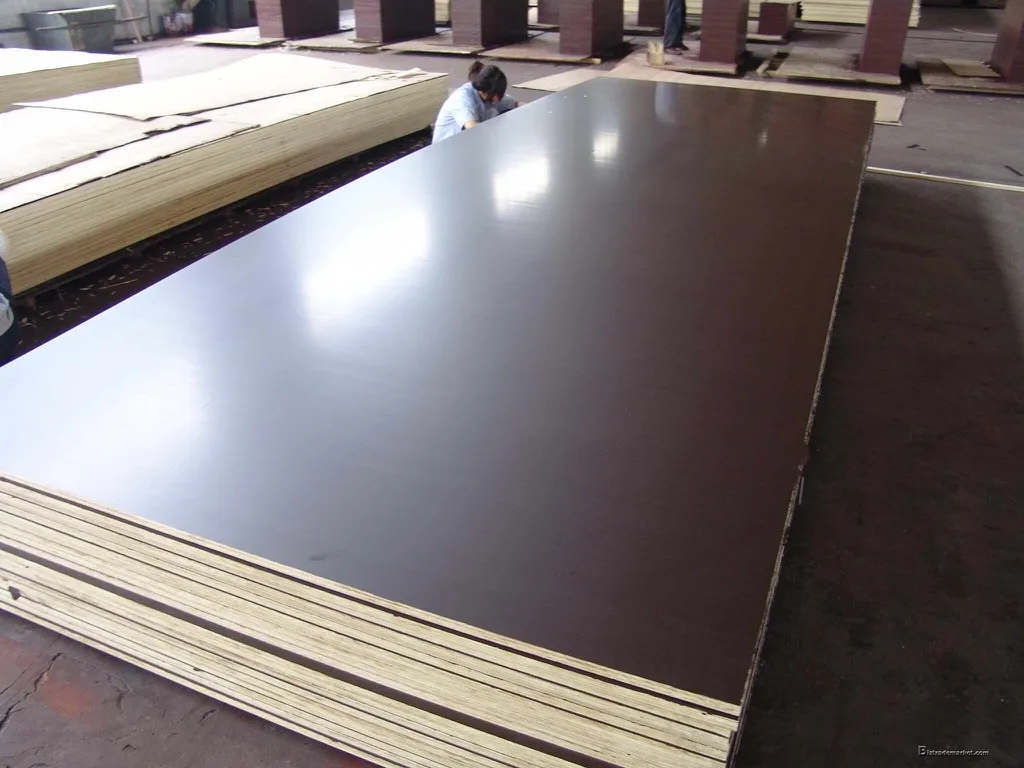

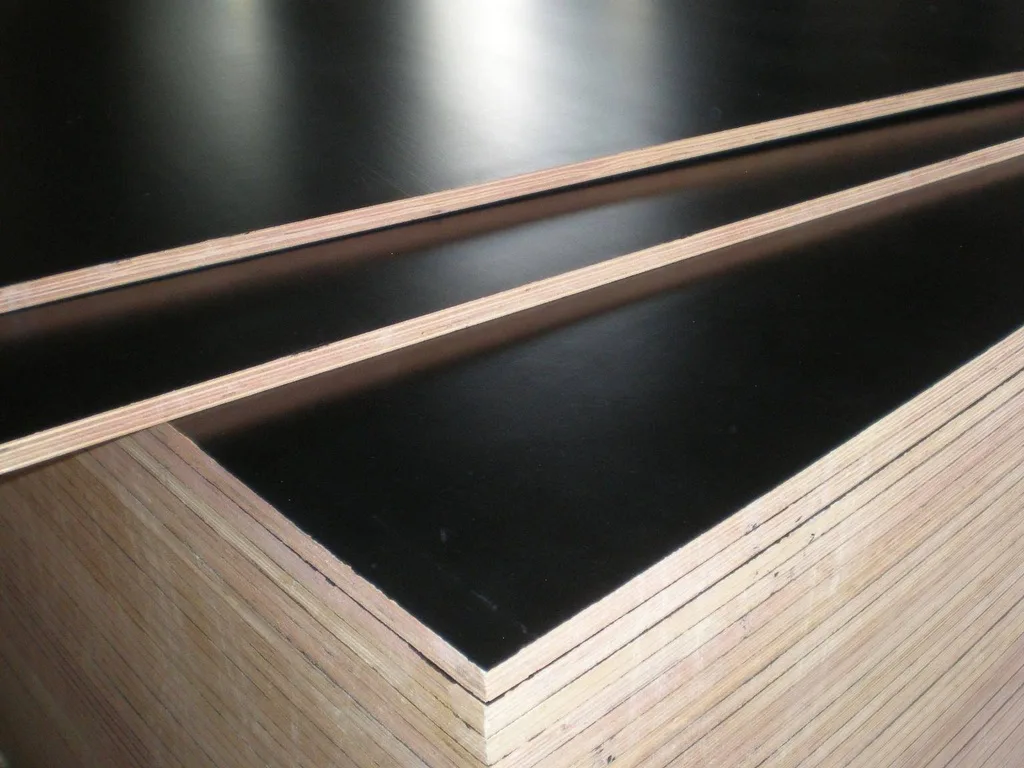

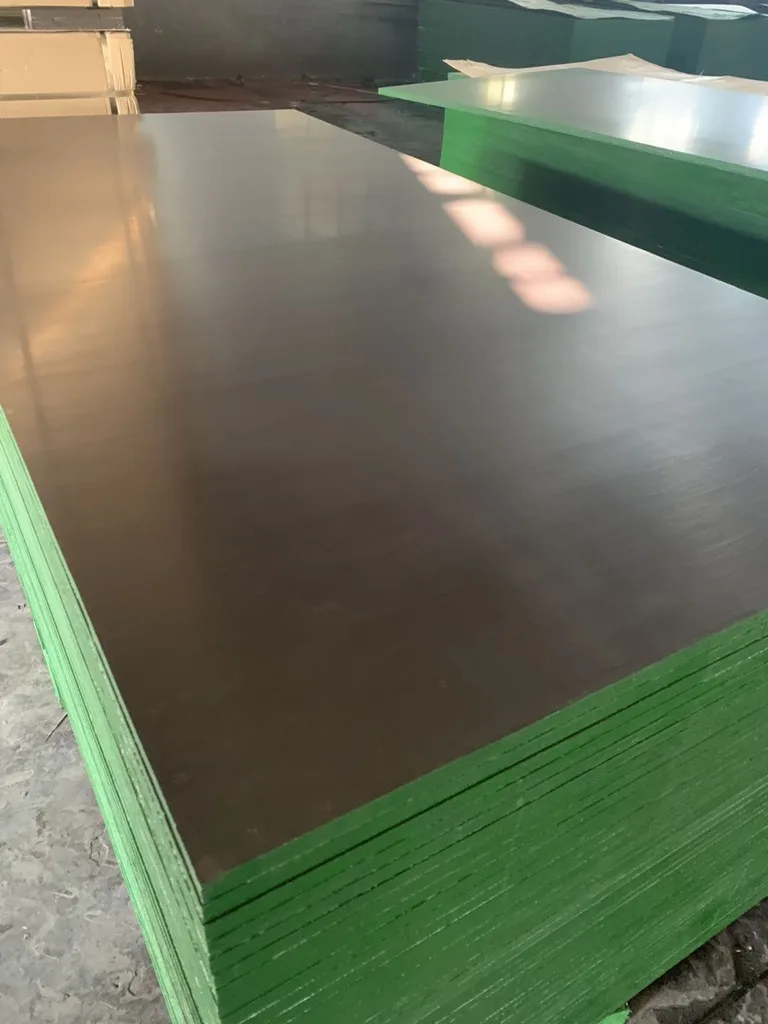

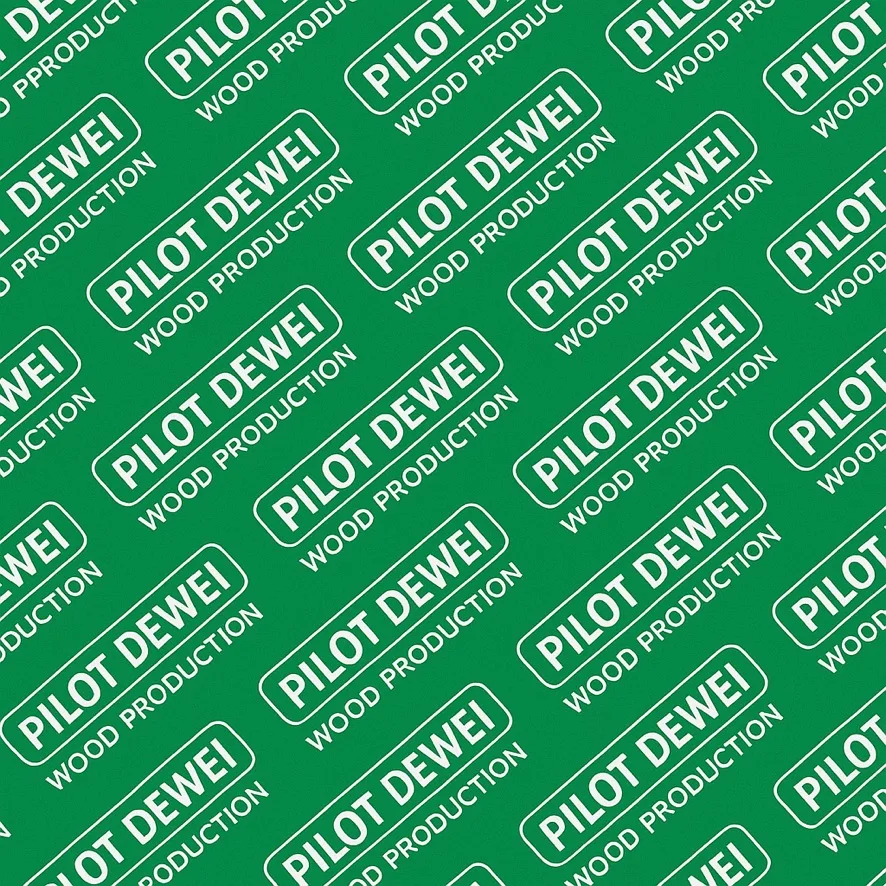

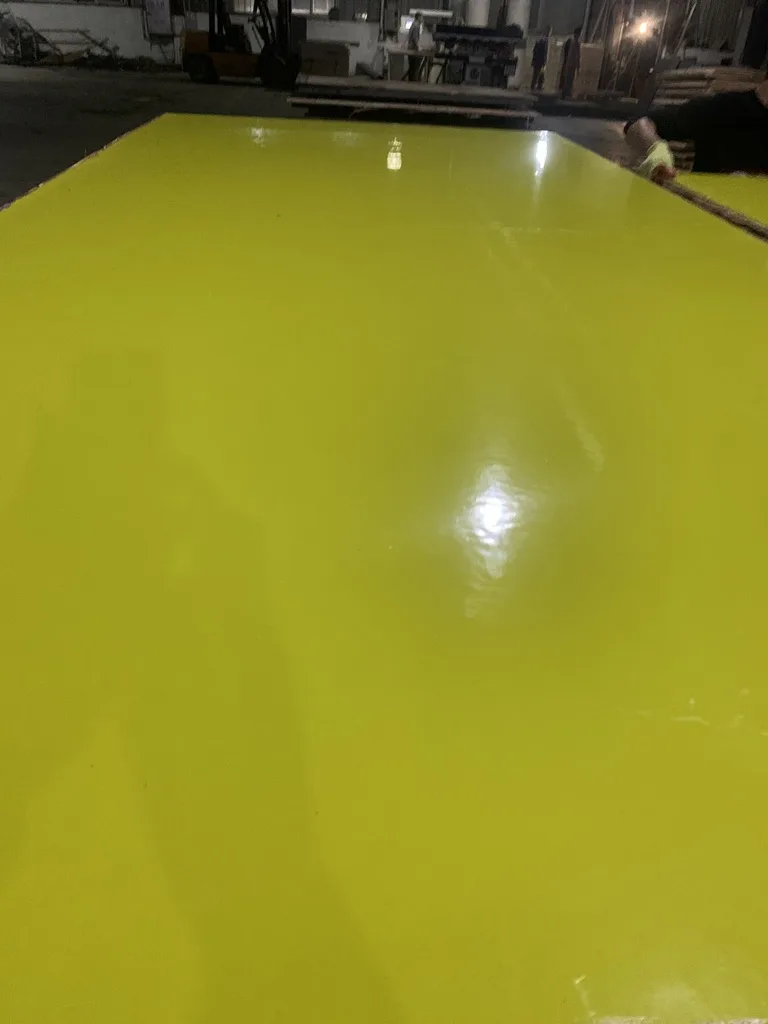

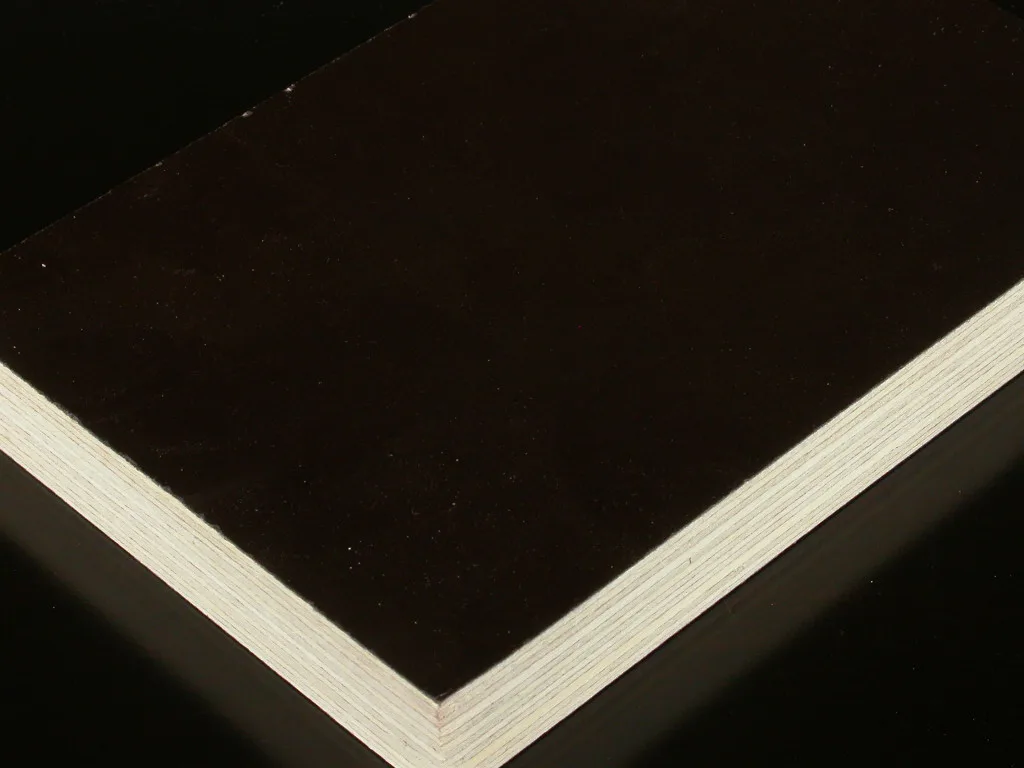

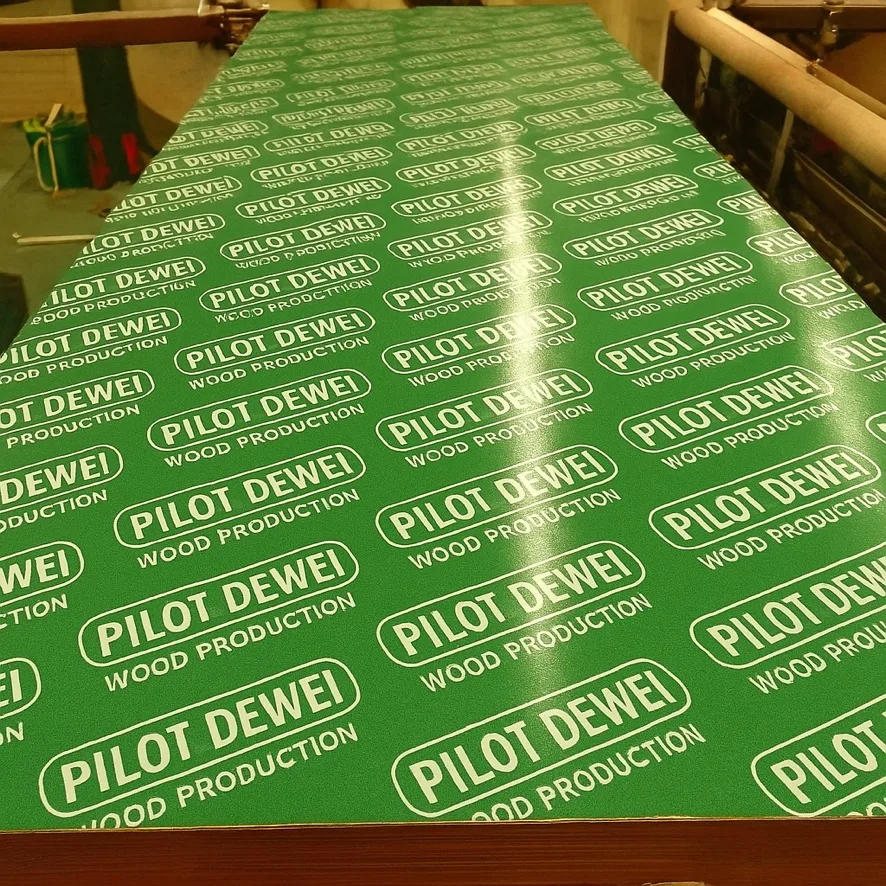

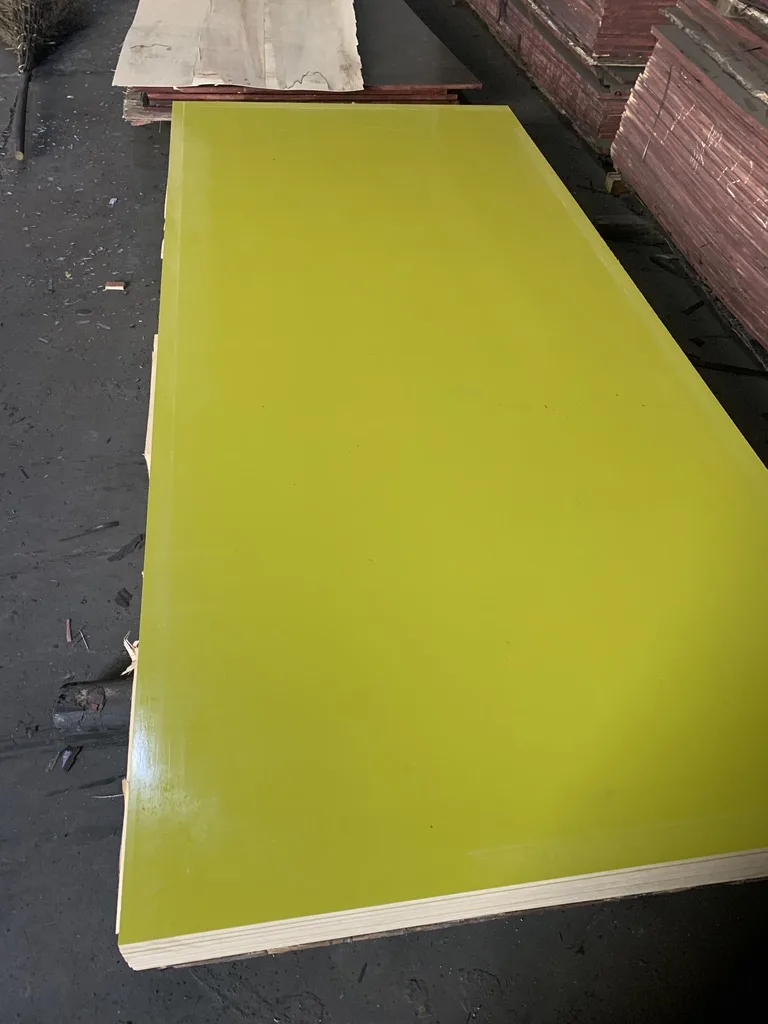

Film & Colour Options
Film faced plywood is available in multiple colours and surface finishes to suit different applications and project preferences.

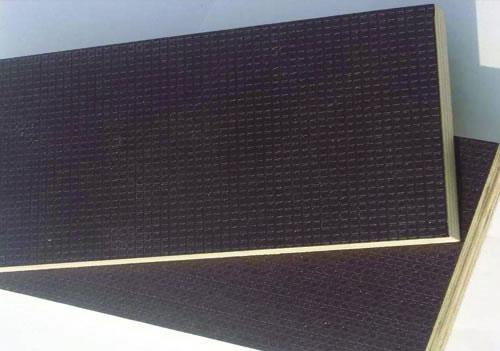

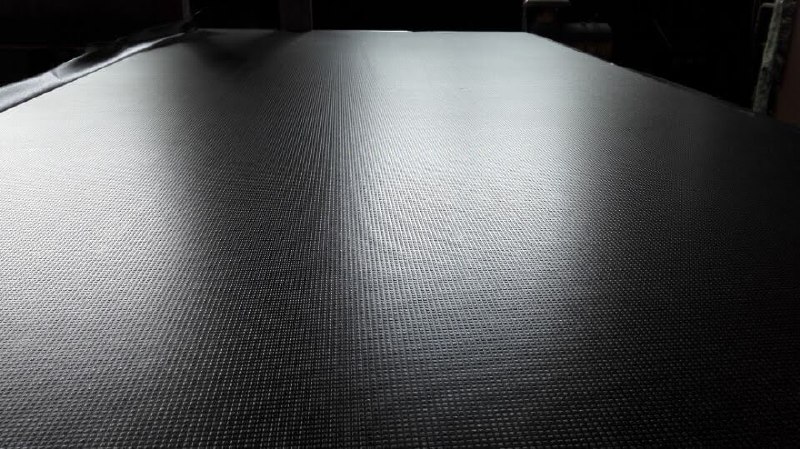

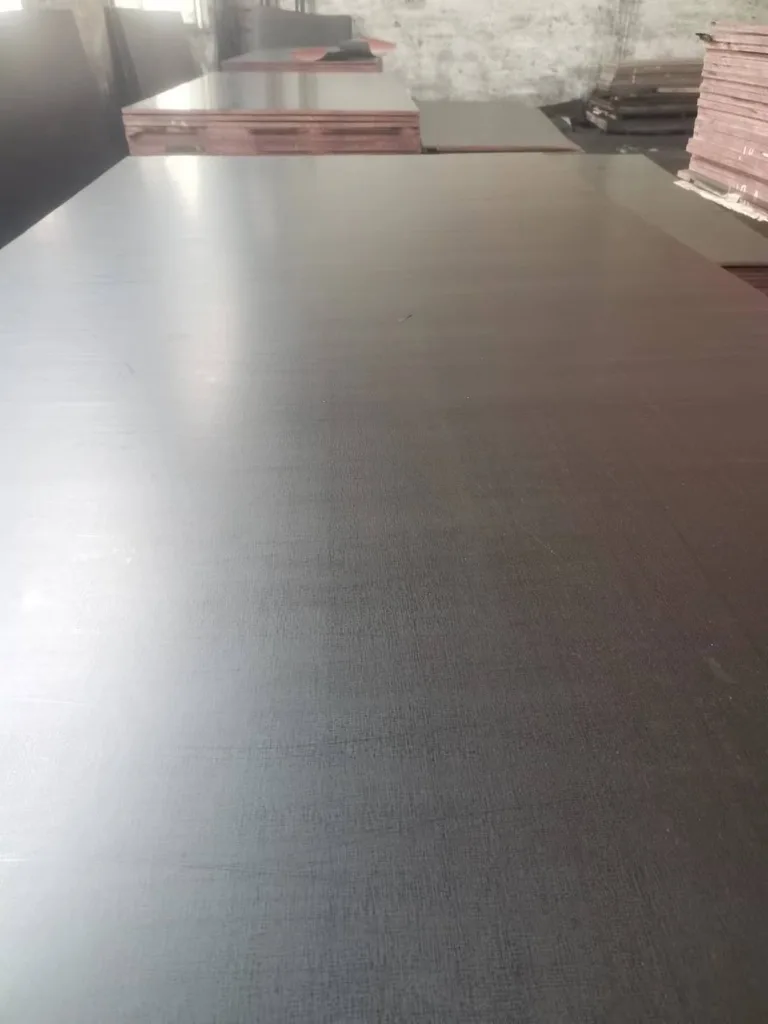

Surface finishes: Smooth / Smooth (F/F) and Anti-slip Mesh (F/W). Hexa pattern available for flooring applications.
Specification
| Item | Details |
|---|---|
| Product Name | Film Faced Plywood (Shuttering Plywood / Phenolic Plywood) |
| Face / Back | Phenolic resin film overlay (117–167 g/m²) |
| Surface Finish | Smooth/Smooth (F/F) — Smooth/Mesh (F/W) — Hexa pattern |
| Core Material | Poplar / Hardwood / Eucalyptus / Birch / Combi core |
| Glue | WBP Melamine glue or WBP Phenolic glue |
| Standard Sizes | 2440 × 1220 mm (8' x 4'), 2500 × 1250 mm, or custom |
| Thickness Range | 9 / 12 / 15 / 18 / 21 / 25 mm |
| Board Tolerance | Length/Width: ±1.5 mm — Thickness: ±0.5 mm |
| Edge Treatment | Factory-sealed with acrylic paint (2–3 coats) |
| Formaldehyde | E1 or E0 standard |
| Certification | CE & ISO certified (certificates available upon request) |
| Customization | Size, thickness, core type, film type, colour available |
Typical Applications
Concrete Formwork & Shuttering
The primary application. Film faced plywood provides the smooth, water-resistant forming surface needed to shape wet concrete into slabs, walls, beams, columns, and foundations. The smooth film ensures easy release and a clean concrete surface finish.
Transport & Industrial Flooring
Anti-slip film faced plywood (mesh or hexa surface) is widely used for truck floors, trailer beds, shipping containers, and loading platforms. The phenolic film provides durability against heavy loads, foot traffic, and weather exposure.
Temporary Works & Scaffolding
Strong and stable enough for scaffolding platforms and temporary walkways. The sealed edges and waterproof film protect the panel from weather during extended site use.
Why Choose Us
- Multiple core and film options to match your performance and budget requirements
- CE & ISO certified production — quality documentation available
- Experienced export team — reliable packing, shipping, and after-sales support
- Competitive pricing from direct manufacturer — no middleman markups
- FSC-certified materials — suitable for projects requiring sustainable sourcing
- Flexible MOQ and customization — we work with both large contractors and small distributors
- Consistent quality control across production batches — repeat orders delivered to specification
Get a Quote for Film Faced Plywood
Tell us your requirements — core type, film colour, thickness, size, and quantity. We will provide a competitive offer.
