Bed Slats LVL — High Strength Birch
High strength Birch LVL (Laminated Veneer Lumber) is an engineered wood composite specifically developed for applications requiring exceptional bending strength, stiffness, and dimensional stability. Unlike ordinary plywood, LVL veneers are arranged in a single primary grain direction, dramatically improving load-carrying efficiency under bending stress.
Ideal for bed slats, furniture frame support, sofa components, and engineered wood structural applications where consistent performance and repeatable machining are critical.
| Specification | Details |
|---|---|
| Standard Thickness | 12 mm |
| Material | 100% Birch Veneer |
| Construction | 11-Layer Engineered LVL |
| Grain Direction | All main veneers aligned in one direction |
| Face/Back Layers | Optimized to retain ~1.0-1.1 mm after sanding |
| Glue | E0 glue (formaldehyde-free) |
| Surface | Sanded, polished, drilling & chamfering available |
| FSC Available | FSC 100% certified option |
| Compliance | EUDR support, non-Russian origin available |
Why LVL Construction?
🎯 Single-Direction Grain Alignment
Unlike conventional plywood (cross-directional), LVL veneers are arranged in one main direction, allowing the material to carry bending loads far more efficiently. This engineering approach maximizes strength-to-weight ratio.
💪 Superior Stiffness & Strength
The optimized 11-layer construction delivers consistent MOR ≥150 N/mm² and MOE ≥15000 N/mm², ensuring reliable performance in demanding load-bearing applications.
11-Layer Engineered Structure
The design concentrates strength where it matters most — the face and back layers where bending stress is highest.
Why this matters: During bending, the highest stress concentrates in the outermost layers. By preserving more effective thickness on face/back while optimizing core layers, we maximize MOR without sacrificing stiffness (MOE).
Key Features & Advantages
- ✅Improved Stiffness (MOE) — LVL construction and optimized layer system deliver stiffness ≥15000 N/mm².
- ✅High Bending Strength (MOR) — Preserved face/back layers engineered to achieve MOR ≥150 N/mm².
- ✅Dimensional Stability — Single-direction grain orientation minimizes warping and twist. Stable thickness after pressing and sanding.
- ✅Repeatable Processing Performance — Consistent density and structure enable reliable drilling, chamfering, and further machining.
- ✅Sustainable & Certified — FSC 100% available. E0 glue (zero formaldehyde added). EUDR compliant, non-Russian origin options.
Typical Applications
Mechanical Performance (EN 310 Standard)
All LVL performance metrics are tested according to EN 310: Wood-based panels — Determination of modulus of elasticity in bending and of bending strength.
Test Method
A sample is placed on two supports and loaded at the center until bending and failure occur. From this test, MOR (bending strength) and MOE (stiffness during bending) are calculated.
• Thickness (t) = 12 mm
• Support span (l₁) = 20 × t = 240 mm
• Sample length (l₂) = 20 × t + 50 mm = 290 mm
Project Note: For specific applications, test width can follow the actual product width required by the customer, provided the test setup and calculation method are clearly controlled.
Technical Drawings — Bed Slat Specifications
Our LVL bed slats are manufactured to precise engineering drawings. The following specifications are examples of bed slat configurations we supply to furniture manufacturers.

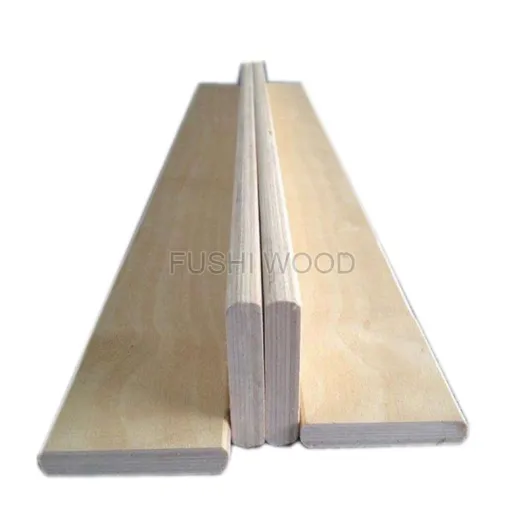

Slat arrangement drawing — 80×200 bed frame

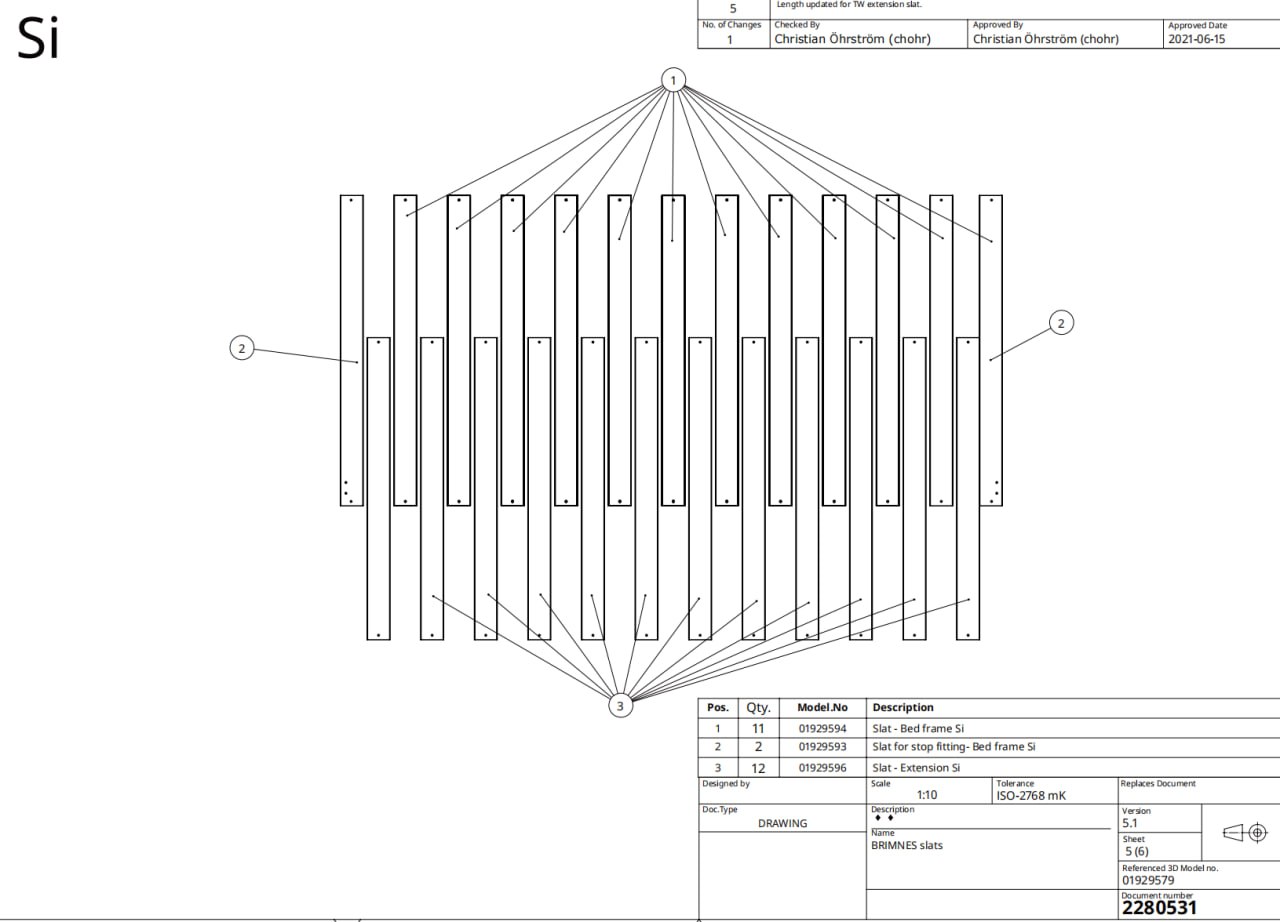

Full slat detail dimensions

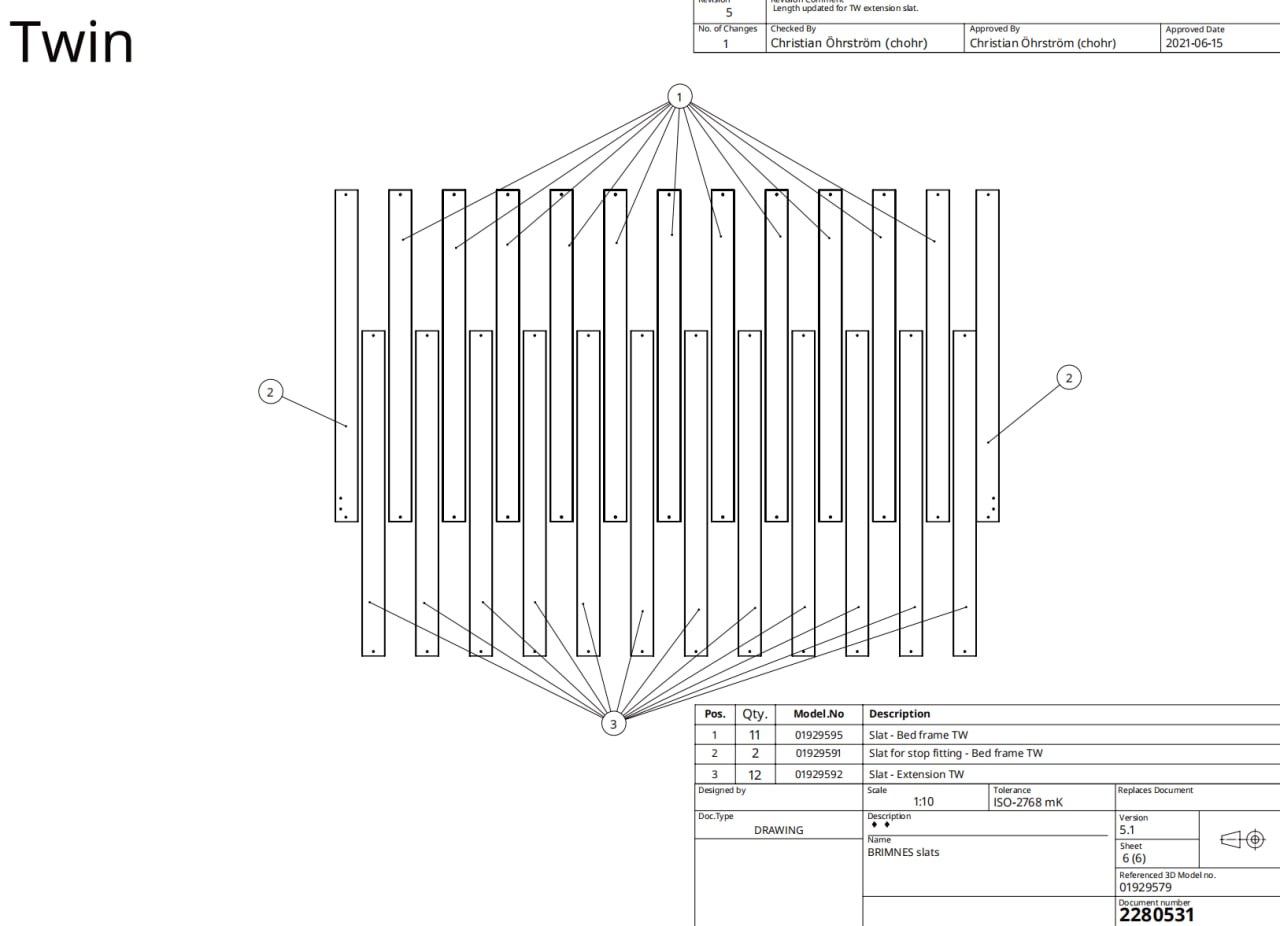

Twin/Single extension slat specifications
Custom dimensions available: We can manufacture LVL slats to any specified length, width, thickness, hole pattern or chamfer requirement. Contact us with your technical drawings for a tailored quotation.
Processing & Customization Options
✂️ Machining
Drilling, chamfering, edge banding, and further machining available on request.
🎨 Surface Finishes
Sanded, polished, or raw surface options. Custom finishes available.
📋 Certifications
FSC 100%, EUDR compliant, non-Russian origin available.
📦 Custom Dimensions
Non-standard sizes available. Consult with our engineering team.
Request a Quote for LVL Birch Bed Slats
Contact us for detailed specifications, samples, competitive pricing, and custom engineering solutions.
